Configuration change

tl;dr

If you want to change the configuration for the function manager version v15 (using RCMS version 4_9_3) you should commit to the branch named scoutFM-RCMS_4_9_3_SCOUTFM_v15. An archive containing the xml configuration files will be automatically created in the package repository from where it can either be retrieved manually or (preferred) deployed using the script at P5 as described on the page for the deployment of the FM.

For a more detailed description, read on.

Overview

The CI of the configuration repository is triggered in three ways:

• when the pipeline for the function manager itself succeeds
• automatically upon each commit when changing the configuration of a tagged FM
• manually when changing the configuration of a FM that is being developed in a branch

Triggered by FM repository

When a new version of the FM is built by the CI in the FM repository that pipeline will attempt to create a pipeline in a branch of the name of the branch or tag of the FM. If no such branch is found in the FM configuration repository the job will fail.

Example

If the FM is built in branch test-new-feature, then a branch with the same name should exist in the configuration repository. Likewise, if the FM is tagged, e.g. as scoutFM-RCMS_4_9_3_SCOUTFM_v15, then a branch of the same name needs to exist in the configuration repository.

Triggered by changes to the configuration of a tagged FM

If the configuration in the branch corresponding to a tag (i.e. a branch of the form scoutFM-RCMS_*) is changed by commiting to that branch, the CI pipeline is automatically triggered and creates a new configuration that supersedes the previous one. Once the CI pipeline succeeds it is ready to be picked up by the deployment script at P5 (see deployment of the FM).

Example

If the a new commit is made to branch scoutFM-RCMS_4_9_3_SCOUTFM_v15 the CI pipeline will automatically extract the required information and create a new configuration that will be stored in the package repository.

Triggered manually for changes to the configuration of a development (i.e. untagged) FM

If a new commit is made to a branch that doesn't conform to the naming convention for FM tags (i.e. it does not begin with scoutFM-RCMS_), a pipeline will be created, but not executed. To successfully execute it, the CI variables RCMS_VERSION and FM_VERSION corresponding to the values of the associated FM have to be supplied.

Example

If a new commit is made to branch refactor-move-out-configuration the pipeline is initially waiting to be started manually. To start it, one can click on the left cog and then on the name of the job ("get_vars_from_repo"), but not onto the play symbol.

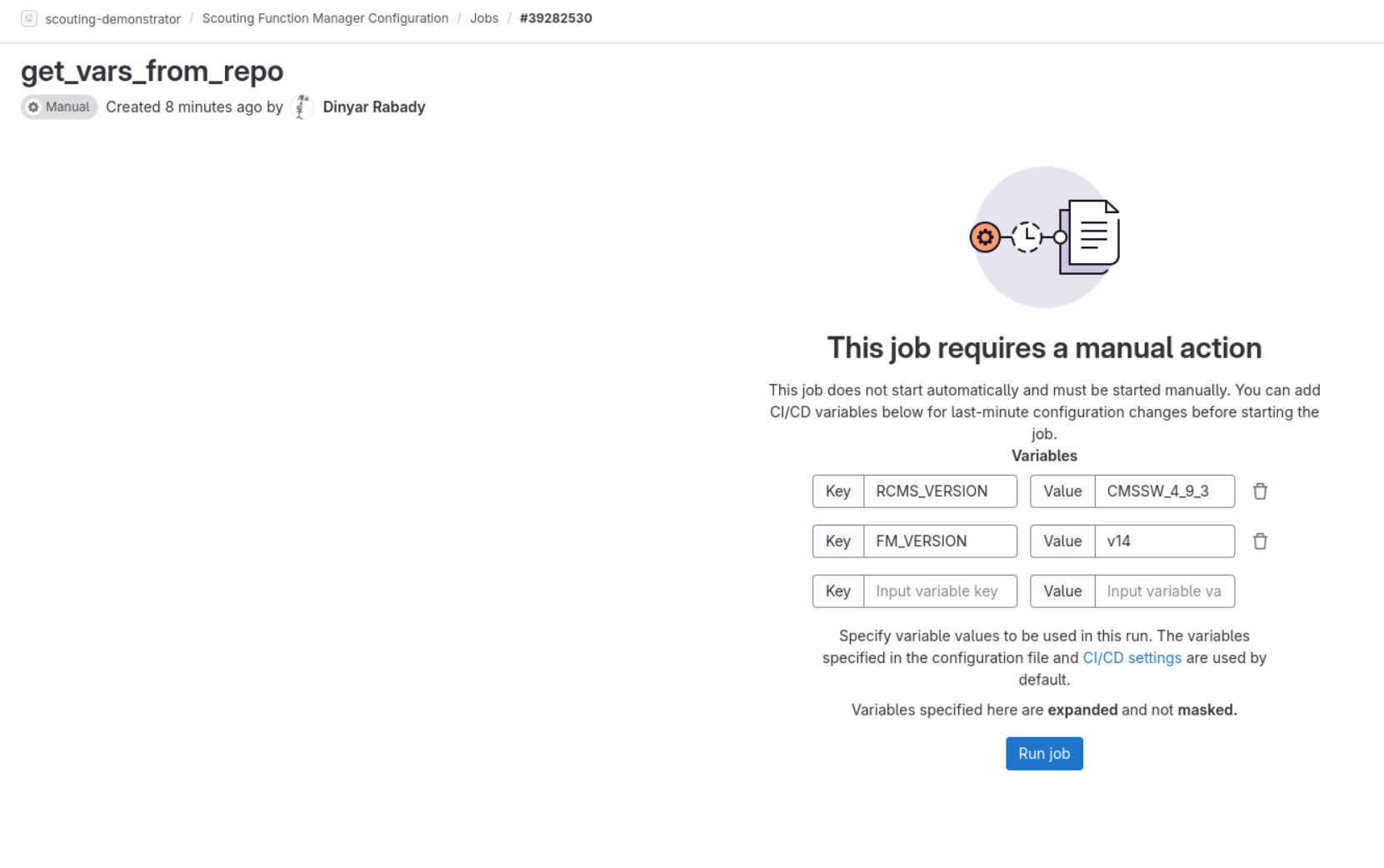

In the subsequent page the required variables (corresponding to the FM versions) need to be entered before the job can be started:

Once the pipeline has completed the archive of the configuration can again be found in the package repository.
